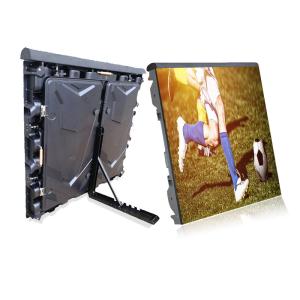

Full Color Outdoor P5 P8 P10 Led Video Wall 960x960mm Football Stadium Perimeter Digital Advertising Led Screen Display

Name: Full Color Outdoor P5 P8 P10 Led Video Wall 960x960mm Football Stadium Perimeter Digital Advertising Led Screen Display
Brand: JuCaiYuan
Price: 1 USD

Quality Full Color Outdoor P5 P8 P10 Led Video Wall 960x960mm Football Stadium Perimeter Digital Advertising Led Screen Display wholesale

Brand Name : JuCaiYuan

Model Number : p5 p6 p8 p10 p4

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P8 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Overview

Quick Details

Application:: Outdoor

Color:: Full Color

Panel Size:: 960mmx960mm

Pixel Pitch:: 8mm

Place of Origin:: Guangdong

Model Number:: P8 P10

Brand Name:: JUCAIYUAN

Function:: SDK

Type:: LED

Module Size:: 320mm x 160mm

Module Resolution:: 40dots x 20dots

LED Chip:: SMD3535

Scan Mode:: 1/5scan

Pixel Density:: 15625dots/sqm

Refresh Rate:: 1920hz

Brightness:: 6500nits

Waterproof:: IP 65

Warranty:: 2years

Certificate:: CE ROHS FCC

Supply Ability

Supply Ability: 1000 Square Meter/Square Meters per Month

Packaging & Delivery

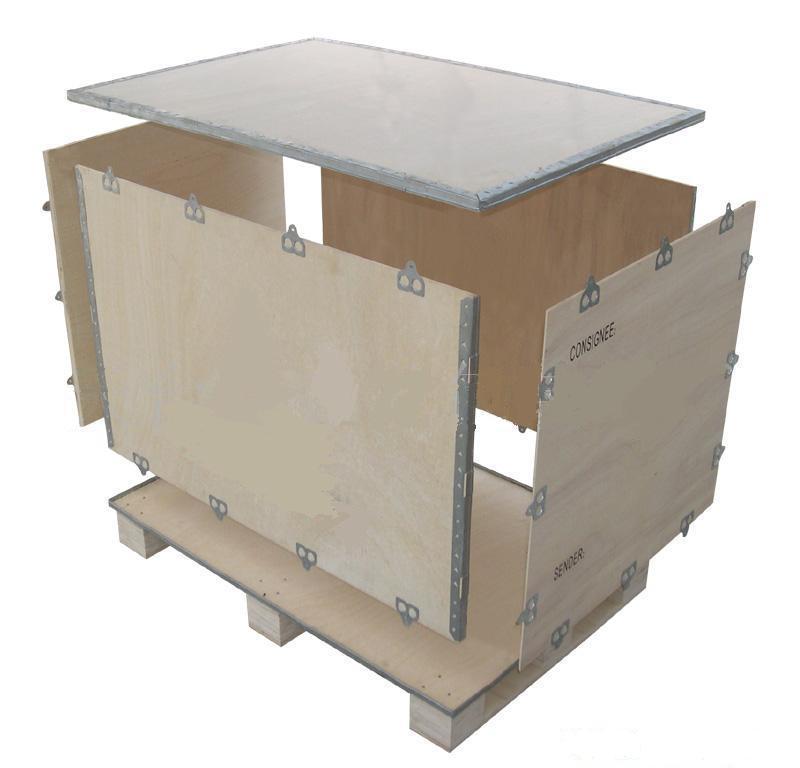

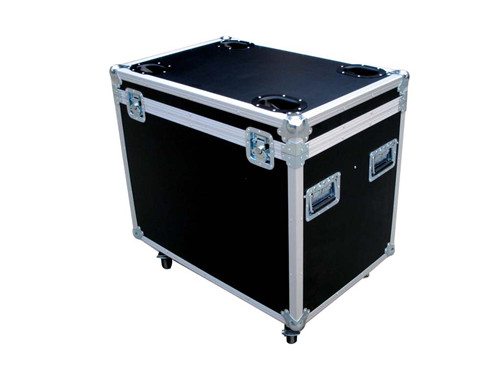

Packaging Details: Fright case or Wooden case

Port: Shenzhen

Picture Example:

Lead Time:

Quantity(Square Meters)	1 - 100	>100
Est. Time(days)	15	To be negotiated

Products Description

Full Color Outdoor P5 P8 P10 Led Video Wall 960x960mm Football Stadium Perimeter Digital Advertising Led Screen Display

Specification

Item	P8
Pixels(Pixel Pitch)	8mm
Pixel Density	15,625dots/㎡
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Drive Duty	1/5scan
Cabinet Resolution	120dots x 120dots
Cabinet Size	960mm x 960mm
Cabinet Net Weight	≈9kg
Best Viewing Distance	8m - 80m
Best Viewing Angle	H:160 °, V: 120°
Gray Level	256levels of Each Color
Display Colors	16.7millions
Max. Power Consumption	700W/㎡
Ave. Power Consumption	280W/㎡
MTBF	>10,000hours
Working Voltage	AC 110-220V, 50-60HZ
Working Temperature	-30℃ - +60℃
Working Humidity	10% - 95%RH
Warranty	2 Full Years

Packing&Delivery

Why Choose Us

Exhibition & Customer Photos

Successful Projects

FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
 A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

 Q2:What pixel pitch should I choose on my display?
 A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

 Q3: To order a display ,What kind of information do I have to offer you?
 A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

 Q4:How to install?
 A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.

 Q5:What about your quality?
 A:The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.

 Q6:What about the warranty?
 A:Two year warranty.

 Q7:What about the lead time?
 A:Orders less than 50 square meter display, lead time is 15 working days.

 Q8:Can I order a sample?
 A:Yes,We welcome customers to order samples to check our product quality of our products and service.
